Four Sockets Ready Board
Four Sockets Ready Board
Introduction
KG-RBD-304MR is a low cost, portable, safe and easy to use pre-wired low voltage Four Sockets Ready Board for single phase supply for electricity to households and business premises that are unbale to carry out conventional full house wiring or who are using power in a confined place or semi-permanent structure.
Technical Data
| Items | Parameters |
| Model Number | KG-RBD-301MR |
| Dimension | L550mm*W323.5mm*D131mm |
| Power Input | AC 230V 50Hz |
| Socket Type | BS/Type G |
| Max. Power Input | 13A |
| Lamp Holder | Screw type E27/Pin type B22 |
| Material of Ready Board | Injection Molded Plastic |
| Type of mounting | Wall Mounting With Four Screws |
| Protection Level | IP54, IK09 |
| Operating Temperature | -30°C to 60°C |
| Color | Grey |

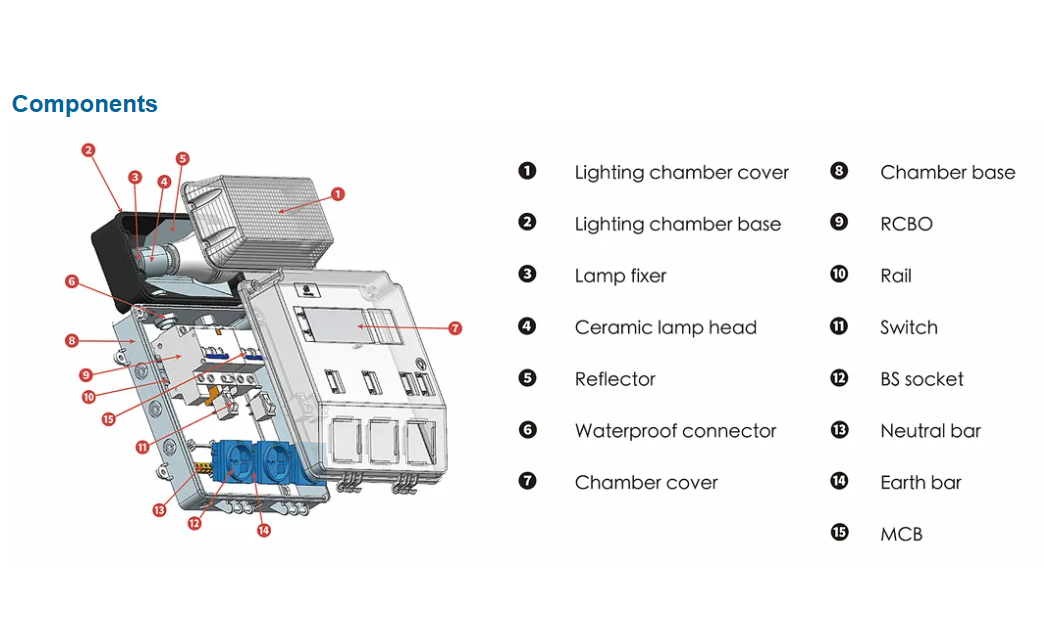

Ready Board Componets:
Products Parameters
| S.N. | Product Name | Material | Specification |
| 1 | Lighting chamber cover | HL/transparent PC | 196*116*53.5mm, thickness 2mm |
| 2 | Lighting chamber base | HL/PC+10%G | 196*116*50.5mm, thickness 3mm |
| 3 | Lamb fixer | PBT | To fix the lamb |
| 4 | Ceramic lamb head | Ceramic | To fix the lamb |
| 5 | Reflector | Aluminum | Thickness 0.3mm |
| 6 | Waterproof connector | PA | PG11 |
| 7 | Chamber cover | HL/PC+10%G | 240*274*52.5mm, thickness 3mm |
| 8 | Chamber base | HL/PC+10%G | 259*271*44.0mm, thickness 3mm |
| 9 | RCBO | Standard | 1P+N 25A |
| 10 | Rail | Nickel plating metal | For fixing the RCBO |
| 11 | Switch | Standard | 230V AC/up to 15A |
| 12 | BS socket | Standard | 230V AC/up to 3A |
| 13 | Neutral bar | Copper | For cable connection |
| 14 | Earth bar | Copper | For earthing |
| 15 | MCB | Standard | 3A/16A/25A |
Dimension of the box: 370mm*220mm*113mm
Dimension of the carton: 555mm*415mm*350mm
Gross weight of the carton:15.45KGS
Net Weight of the carton:12.2KGS
